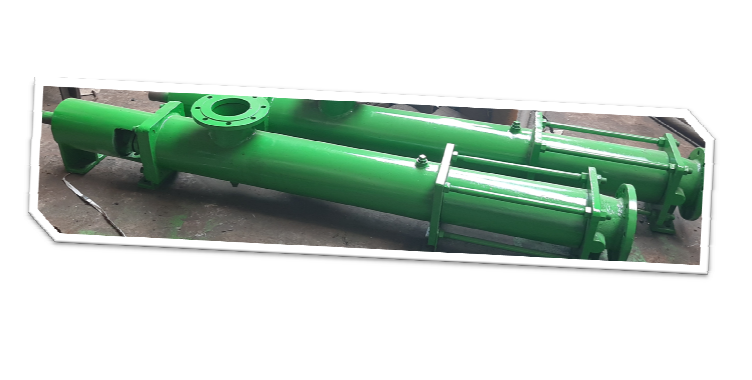

Sugar Screw Pump

Contact Us Now

3 + 11 =

Material of Construction

  • Casing:

    • Cast Iron

  • Rotating Parts:

    • Components: Rotor, Shaft, Coupling Rod, Pin & Bush

    • Material Options: AISI 410, AISI 304, AISI 316, Alloy Steel

  • Stator:

    • Available in Nitrile, Neoprene, Butyl, and EPDM

  • Shaft Sealing:

    • Gland Packed

  • Base Frame:

    • Mild Steel, Fabricated

Specifications

  • Maximum Flow: 200 m³/hr

  • Maximum Viscosity: Up to 1,00,000 cP

  • Temperature Handling: Up to 150 °C

  • Pressure Rating: Up to 24 bar

Product Description

Pump Sizes

Available in 2”, 3”, 4”, 6”, 8”, and larger capacities.
The actual pump size and detailed technical offer will be provided upon receipt of a complete inquiry with specific application details.

Applications

Suitable for handling a wide range of viscous and semi-viscous materials such as:
Molasses, Sulphited Syrup, Melt, Flocculent, Sodium Silicate, Milk of Lime, Muddy Water, Raw Juice, and Magma.

Features

  • “RSFECO” pumps are positive displacement (PD) pumps designed to deliver a non-pulsating flow.

  • Flow rate is independent of head and directly proportional to speed.

  • Non-clogging and reversible operation ensures flexibility in various industrial processes.

  • Self-priming design with low positive suction head requirement.

  • Operates smoothly and silently, ensuring reliable and maintenance-friendly performance.
