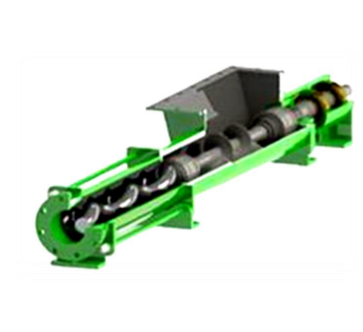

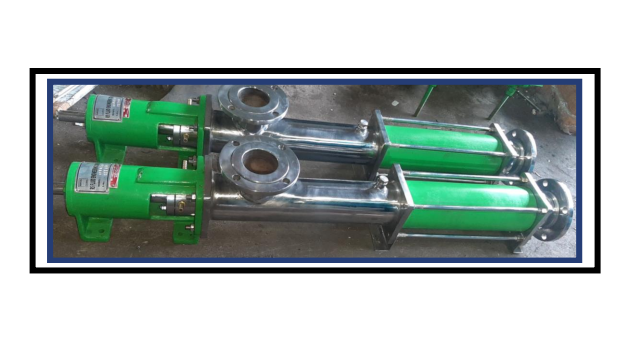

Screw Pump

Contact Us Now

2 + 15 =

Material of Construction Summary



This information outlines the typical materials used for different components of a piece of industrial equipment, likely a pump (based on the presence of a Casing, Rotor, Shaft, Stator, and Shaft Sealing).

Component Material Options
Casing CI (Cast Iron), CF8, CF8M, CF8L, CF8ML (Stainless Steel Casting Grades), MS (Mild Steel)
Rotating Parts AISI 1040, AISI 410, AISI 420, AISI 431 (Steel/Stainless Steel Grades), AISI 304, AISI 316, AISI 316L (Stainless Steel Grades), and other exotic Monel Alloys
Stator Natural, Nitrile, Neoprene, Butyl, EPDM, Silicon, Viton (Elastomer/Rubber Materials)
Shaft Sealing Gland Packed (Compression Packing) & Mechanical Seal
Base Frame MS (Mild Steel), Stainless Steel (cladded or whole) Fabricated

Specification Summary



Here are the key operational specifications:

Specification Value Unit
Max Flow Rate $200$ $\text{M}^3/\text{Hr}$
Max Viscosity $100,000$ $\text{Cp}$ (Centipoise)
Discharge Pressure $36$ $\text{bar}$

Product Description

Here is the summary of the equipment’s applications in a pointer format:



Applications



The equipment is designed for use across numerous industries, specifically handling a wide variety of slurries, sludges, and viscous fluids.

Sewage & Waste Water Treatment Plant

  • Handles Sewage, Water, Raw Sludge, Activated Sludge, Alum Sludge, Centrifuge Sludge, Tannery Effluent, Lime Sludge, and Chrome liquor.

Blast Furnace

  • Used for Carbon Injection, Grouting, LDO (Light Diesel Oil), HSD (High-Speed Diesel), and Oil Sludge.

Mines

  • Involved in Coal Washing, handling Flotation Sludge, Mine Water, and Coal Slurry.

Explosives

  • Manages Matrix Emulsion, Ammonium Nitrate, Bulk Explosives, Emulsion matrix/Mix, and Water.

Paper & Pulp

  • Transfers High Consistency Paper Cellulose Pulp, Black Liquor, Paper Coating Mix, Starch, and Spent Wash.

Ceramic & Refractories

  • Handles Ceramic/Clay Slip, Aluminum Oxide, LDO, and HSD.

Construction

  • Used for Cement Slurry, Grouting, Plastering, Mortar Injection, and Vermiculite Slurry.

Veg Oil & Vanaspati Plant

  • Manages various vegetable oils and byproducts, including De-Waxed Gum & Oils, Crude Palm Oil, Rice Bran Oil, Soap Stock, Wax Oil, fluids related to De-Gumming, and Lecithin.

Chemical, Dye, Paint & Petrochemicals

  • Pumps diverse fluids such as Lime Slurry, Alkaline & Acidic Slurry/Chemical, Detergent & Soap Slurry, Filter Cake, Printing Ink, Dyes & Intermediates, Solvent, Binding Agent, and Petroleum Jelly.
