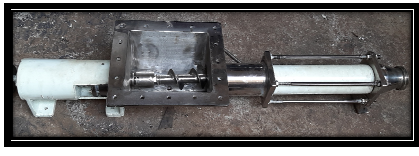

Food Grade Screw Pump
Product Description
Material of Construction
-
Casing: Made from AISI 304, AISI 316, or AISI 316L stainless steel, ensuring durability and resistance to corrosion.
-
Rotating Parts: Include rotor, shaft, coupling rod, pin, and bush, all available in AISI 304, AISI 316, or AISI 316L materials to provide high strength and reliable performance under varying conditions.
-
Stator: Offered in a wide range of materials such as Natural Rubber, Nitrile, Neoprene, Butyl, EPDM, Silicon, Viton, and non-contaminating food-grade stators, selected based on specific application requirements.
-
Shaft Sealing: Available in Gland Packed or Mechanical Seal options to ensure effective sealing and minimize leakage.
-
Base Frame: Fabricated from Mild Steel (MS) or Stainless Steel, available in both cladded and fully stainless steel constructions for enhanced strength and corrosion resistance.
Specifications
-
Maximum Flow: 150 m³/hr
-
Maximum Viscosity: Up to 1,00,000 cP
-
Discharge Pressure: Up to 36 bar
DRIVE ARRANGEMENTS

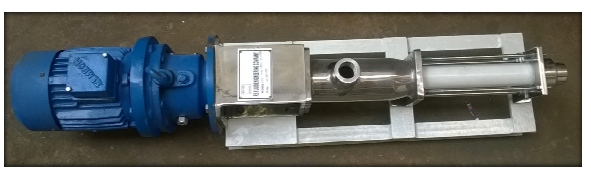

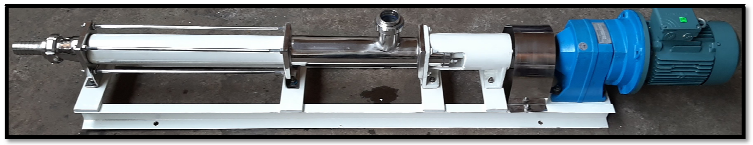

Closely Coupled Pumps

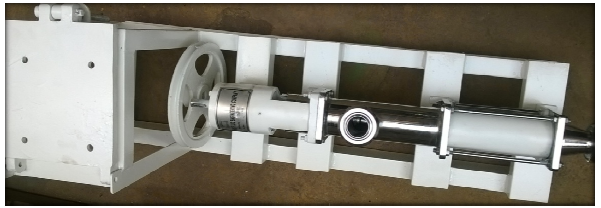

Pump With V- belt Pulley Arrangement
Directly Coupled through coupling Pumps
Applications
-
Beverages, Breweries & Wineries:
Suitable for handling yeast, wort, cider, undiluted brewer’s mix, whole grapes with stalks, waste yeast, spent wash, and spent grain, ensuring smooth and hygienic transfer during production processes. -
Dairy, Sweets & Confectioneries:
Ideal for pumping condensed and concentrated milk, cream, butter, liquid glucose, latex, chocolate mix, jam, honey, sugar syrup, maltodextrin, gelatins, nut paste, ice cream, and dung slurry, maintaining product consistency and hygiene. -
Fruit & Vegetable Processing:
Efficient for transferring mango, litchi, guava, banana, apple, pineapple, orange, pomegranate, peach, grapes, strawberry, papaya pulp, noodles, idli mix, shrikhand, ghee, lecithin, and lithophone paste, ensuring gentle handling of viscous and fibrous materials. -
Cosmetics & Pharmaceuticals:
Widely used for chyawanprash, sugar syrup, creams, malt-based products (like Boost and Horlicks), toothpaste, and lyes, offering smooth flow and precise metering for sensitive formulations.
